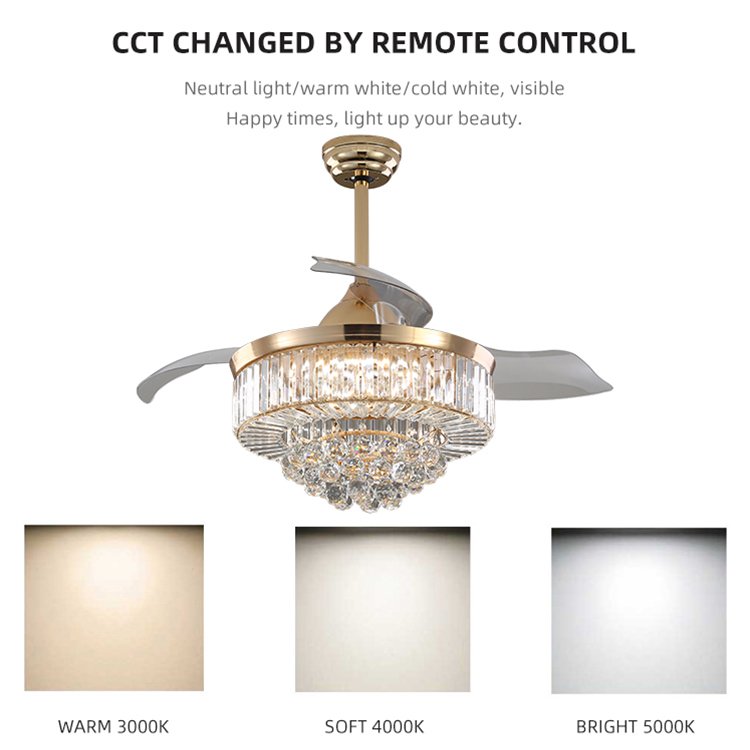

Luxury Crystal Retractable Ceiling Fan Light: Installation steps and precautions

Here’s a comprehensive guide to installing a luxury crystal retractable ceiling fan light, emphasizing both steps and critical precautions for safety and success:

Core Principle: Safety First & Read the Manual!

  • Manufacturer’s Instructions Are King: Your specific model’s manual overrides any general guide. Dimensions, wiring colors, retraction mechanisms, and crystal assembly will vary.
  • Electrical Safety is Non-Negotiable: Turn off power at the main breaker panel and verify it’s off with a non-contact voltage tester before touching any wires.
  • Weight is Critical: These units are HEAVY (often 50+ lbs / 23+ kg). You MUST have adequate support. Verify your junction box is rated specifically for ceiling fans (marked “Acceptable for Fan Support” or “UL Listed 314” holding at least 70 lbs / 32 kg). Older boxes for lights only are dangerous.

Pre-Installation: Preparation is Key

  1. Gather Tools & Materials:
    • Voltage Tester (Non-Contact)
    • Screwdrivers (Phillips, Flathead)
    • Wire Strippers/Cutters
    • Wire Connectors (Nuts – usually provided, but have extras)
    • Electrical Tape
    • Ladder(s) – Sturdy and tall enough
    • Assistant (Highly Recommended, often Essential)
    • Painter’s Tape (for marking wires/direction)
    • Soft, Clean Cloths or Gloves (for handling crystals)
    • Camera/Phone (to take pictures of wiring before disconnecting old fixture)
    • Possibly: Circuit Finder (if unsure which breaker)
    • Possibly: Pliers, Adjustable Wrench, Drill/Driver
    • Possibly: Support Brace (if replacing an old light box – essential if not fan-rated)
  2. Read the Manual Thoroughly: Understand the unique retraction mechanism, crystal assembly sequence, remote pairing, and wiring specifics before starting.
  3. Prepare the Workspace:
    • Clear the area below. Cover furniture/floors.
    • Turn off the power at the breaker. VERIFY with the tester at the ceiling wires.
    • Remove the existing fixture carefully. Take pictures of wiring connections.
    • Crucially: Inspect the junction box. If it’s NOT fan-rated, stop immediately. Install a UL-listed fan-rated retrofit brace box. This is mandatory for safety.
    • Ensure the ceiling outlet box is centered and secure.
  4. Unpack Carefully:
    • Lay components on a soft surface (blanket, carpet).
    • Remove all packing materials meticulously.
    • Handle crystals with extreme care: Use clean gloves or soft cloths to avoid fingerprints and oils. Inspect each piece for damage. Sort them according to the manual’s assembly diagram.

Installation Steps:

  1. Install the Ceiling Mounting Bracket:
    • Feed the supply wires (Black/Hot, White/Neutral, Green/Bare Copper/Ground) through the center hole of the mounting bracket.
    • Align the bracket over the junction box holes.
    • Securely fasten the bracket to the junction box using the provided screws. Ensure it’s tight and doesn’t wobble. This bracket supports the entire weight.
    • Precaution: Double-check bracket tightness. It must be rock-solid.
  2. Prepare the Fan Motor Housing (Downrod Assembly):
    • If your model uses a downrod, thread it into the top of the fan motor assembly as per the manual. Tighten the setscrews firmly.
    • Route the fan’s wires (Motor, Light, Receiver) through the downrod and canopy.
    • Precaution: Ensure setscrews are very tight to prevent wobble. Don’t pinch wires.
  3. Wire the Fan (Critical Step):
    • Identify Wires: Typically:
      • Ceiling: Black (Hot), White (Neutral), Green/Bare Copper (Ground)
      • Fan: Black (Motor Hot), Blue (Light Hot – often), White (Neutral), Green (Ground). May also have wires from the receiver module.
    • Manual First! Follow the wiring diagram EXACTLY. Colors can vary by brand.
    • Connect:
      • Fan White to Ceiling White (Neutral)
      • Fan Black (Motor) to Ceiling Black (Hot) – Often via the receiver module
      • Fan Blue (Light) to Ceiling Black (Hot) – Often via the receiver module
      • Fan Green to Ceiling Green/Bare Copper (Ground)
    • Use wire connectors (nuts) to secure connections tightly. Wrap each connection with electrical tape for extra security.
    • Carefully tuck all wires neatly into the junction box. Avoid pinching.
    • Precautions:
      • POWER MUST BE OFF! Verify again.
      • Match wire functions, not just colors. Consult the manual.
      • Ensure no loose strands. Tight connections prevent arcing/fires.
      • Don’t force wires into the box; they shouldn’t bear weight or be pinched by the canopy.
  4. Lift and Secure the Fan Motor Assembly:
    • Requires Assistant: This is the heaviest part. Lift the motor assembly (with downrod attached) up to the mounting bracket.
    • Align the keyhole slots or hooks on the canopy withacket.
    • Attach Fan Blades:
      • Follow the manual’s specific sequence. Usually involves:
        • Attaching blade holders (brackets) to the motor arms using provided screws. Tighten securely but don’t overtighten and strip.
        • Attaching blades to the holders using screws. Ensure all screws are tight and uniform.
      • Precaution: Tighten blade screws evenly and securely. Loose blades cause severe wobble. Double-check all screws after a few days of operation.
    • Install the Light Kit (Crystal Assembly):
      • Handle Crystals Meticulously: Wear gloves or use soft cloths.
      • Follow the manual’s diagram exactly for the crystal assembly sequence. This is often intricate.
      • Attach the light housing/base to the bottom of the fan motor assembly using provided screws.
      • Connect the light kit wires to the corresponding wires from the fan motor/receiver (e.g., Blue to Blue, Black to Black, White to White, Ground to Ground). Use connectors and tape.
      • Carefully assemble the crystal arms and pendants onto the light base according to the diagram. This usually involves threading pins or screws through precise holes. Work slowly and methodically.
      • Install light bulbs (LEDs usually recommended, check wattage max!). Ensure bulbs are compatible and not exceeding maximum wattage.
      • Attach any final glass diffusers or covers.
      • Precautions:
        • Extreme care with crystals: Avoid fingerprints, oils, and excessive force. One slip can shatter them. Work over a soft surface.
        • Ensure all electrical connections for the light are secure.
        • Don’t overtighten crystal mounting screws/pins.
        • Verify bulbs are correct type and wattage.
    • Install Remote Control Receiver (If Applicable):
      • This is usually pre-installed or mounted inside the canopy/canopy cover before wiring. Follow manual instructions precisely for placement and wiring integration. Pair the remote as instructed.
    • Final Checks & Testing:
    • Visual Inspection: Double-check all screws (blades, brackets, canopy, downrod, light kit), wire connections (tucked neatly, not pinched), and crystal assembly.
    • Clearance: Ensure blades have ample clearance from walls and ceilings in both retracted and extended positions. Verify crystals don’t obstruct blade movement.
    • Restore Power: Turn the breaker back on.
    • Test Functions (Carefully & Methodically):
      • Remote/Wall Control: Test all fan speeds (Low, Med, High), light on/off, dimming (if applicable).
      • Retraction Mechanism: Test extending and retracting the fan multiple times. Listen for smooth operation, no grinding or catching. Observe clearance.
      • Wobble Check: Run the fan on high speed. Observe for excessive wobble. Minor wobble is normal; significant wobble requires troubleshooting (blade balancing, checking screws, ensuring bracket is level).
      • Noise: Listen for unusual noises (rattling, grinding, buzzing).
    • Final Tightening: After initial testing (especially if wobble was noted), go back and ensure ALL screws are tight (blades, blade holders, downrod, canopy). Vibration can loosen them.
    • Critical Precautions Summary:
    • POWER OFF & VERIFY: Always. No exceptions. Double-check with a tester.
    • Fan-Rated Junction Box: Mandatory. Install a retrofit brace if needed. Old light boxes are unsafe.
    • Weight & Support: The fixture is extremely heavy. Use a strong assistant. Ensure the bracket is securely mounted to a fan-rated box. Test the lock.
    • Handle Crystals with Kid Gloves: Use clean gloves/cloths. Work slowly and precisely over a soft surface. Follow the assembly diagram exactly.
    • Follow the Manual: Your specific model’s instructions are the ultimate guide for wiring, assembly, retraction, and remote pairing.
    • Secure All Connections: Electrical (wire nuts tight, taped) and Mechanical (screws tight, blades balanced, downrod secure).
    • Clearance: Critical for blades and crystals in both positions. Measure twice.
    • Test Thoroughly: Functions, speeds, light, retraction, wobble, noise.
    • Professional Help: If unsure about electrical work, box support, wiring, or the retraction mechanism at ANY point, hire a licensed electrician or qualified installer. Luxury fixtures are a significant investment; improper installation risks damage and injury.
    • By meticulously following these steps and prioritizing the precautions, you can successfully install and enjoy its beauty and function for years to come.
