This 48-inch gold wood grain smart ceiling fan light combines modern aesthetics with smart technology and is perfect for the living room, bedroom, or dining room.
The following is the product characteristics introduced in detail, and the installation guide.
💡 product features
- Core design and appearance
Appearance style: It adopts the classic Brushed Gold (Brushed gold) motor housing, paired with white Solid Wood fan blades, with a simple design and Nordic/modern feel.
Fan blade material: Usually made of high-quality solid wood or lightweight plywood, after balancing treatment, it runs more smoothly and has lower noise.
Applicable space: 48 inches (approximately 1.2 meters) in diameter, suitable for medium-sized rooms of 12 to 20 square meters.
- Intelligent control system
Six wind speed Settings: It adopts a DC motor and supports six wind speed Settings. Compared with ordinary AC motors, it saves about 70% of electricity and is quieter.
Intelligent interconnection: Supports remote control via mobile phone apps (such as Tuya Smart, Smart Life), and is compatible with voice assistants such as Alexa and Google Assistant.
Timing function: It can be set to turn off at 1 hour, 2 hours, 4 hours, or 8 hours, which is convenient for use at night.
Bidirectional rotation (forward and reverse rotation): Summer (forward rotation): Downward air supply, providing a cool sensation.
Winter (reverse): Upward ventilation promotes the circulation of indoor heating, which is energy-saving and environmentally friendly.
- Lighting function
Three-color changing light: Built-in LED light source, supporting the switching of warm light (3000K), neutral light (4500K), and white light (6000K).
Stepless dimming: Smart models usually support brightness adjustment (10%-100%) to meet the needs of different atmospheres.
🛠️ installation guide (simplified version)
Safety Warning: Please make sure to turn off the main power switch before installation! It is recommended that it be operated by a professional electrician.
Step 1: Bracket installation
Cement ceiling: Use expansion screws to fix the wall clock stand to the ceiling.
Wooden ceiling: Fixed to the ceiling beam with wooden screws (ensuring it can bear a load of more than 30kg).
Step 2: Assembly of fan blades and motor
Align the three wood-grain fan blades respectively with the screw holes on the motor.
Tighten it using the matching screws and washers. Note: Ensure that all screws are evenly tightened to prevent shaking during operation.

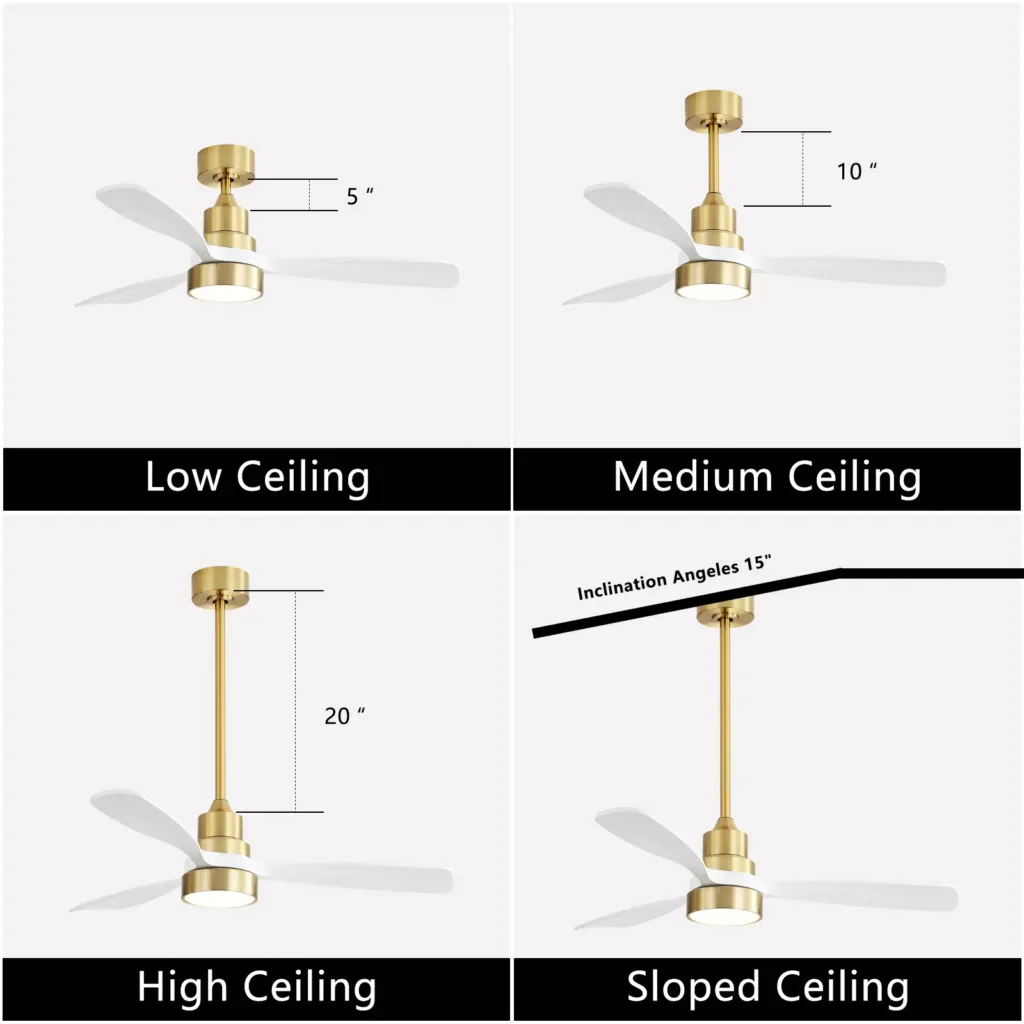

Step 3: Hanging rods and wiring
Thread through the hangers: Pass the wires through the hangers and the decorative covers.
Suspend the motor: Insert the ball end of the suspension rod into the slot of the bracket.
Wiring (core step): Place the Receiver into the bracket.
Connect by color: usually blue to blue (light), white to white (neutral wire), black to black (live wire).
For smart models, it is necessary to ensure that the antenna part is exposed outside the bracket to guarantee the signal.
Step 4: Installation of the lamp panel and lampshade
Connect the plug to the lamp head end.
Fix the LED light panel on the disc at the bottom of the motor.
Rotate and install the acrylic lampshade properly.
📱 intelligent distribution network suggestions
Download the APP: Scan the QR code in the instruction manual to download the official APP.
Pairing mode: After turning on the power, usually hold down the “Pairing” key or the “Fan Switch” key on the remote control for 5 seconds until you hear a “beep” sound.
Connect to WiFi: Add the device to the APP (in a 2.4GHz WiFi environment).
