This 48-inch smart wooden ceiling fan with lights combines modern technology with natural aesthetics, designed to provide you with all-day comfort.
The following is a detailed description of the ceiling fan installation tutorial and product features:
- Preparation
Power Off: Before starting, be sure to turn off the power at the circuit breaker to ensure safety.
Check: Confirm that the ceiling junction box can bear the weight (at least 35kg/70lbs).
Tools: Prepare a ladder, Phillips head screwdriver, and wire stripper. - Installing the Mounting Bracket
Secure the metal mounting bracket to the ceiling junction box using expansion screws or wood screws.
Note: Ensure the bracket is level and the screws are fully tightened to prevent shaking during operation. - Assembling the Blades and Motor
Align the three solid wood blades with the screw holes on the motor plate.
Tighten the washers and screws in sequence. Tip: For solid wood materials, it is recommended to tighten manually to avoid excessive force from power tools damaging the wood grain. - Installing the Downrod and Ball Joint

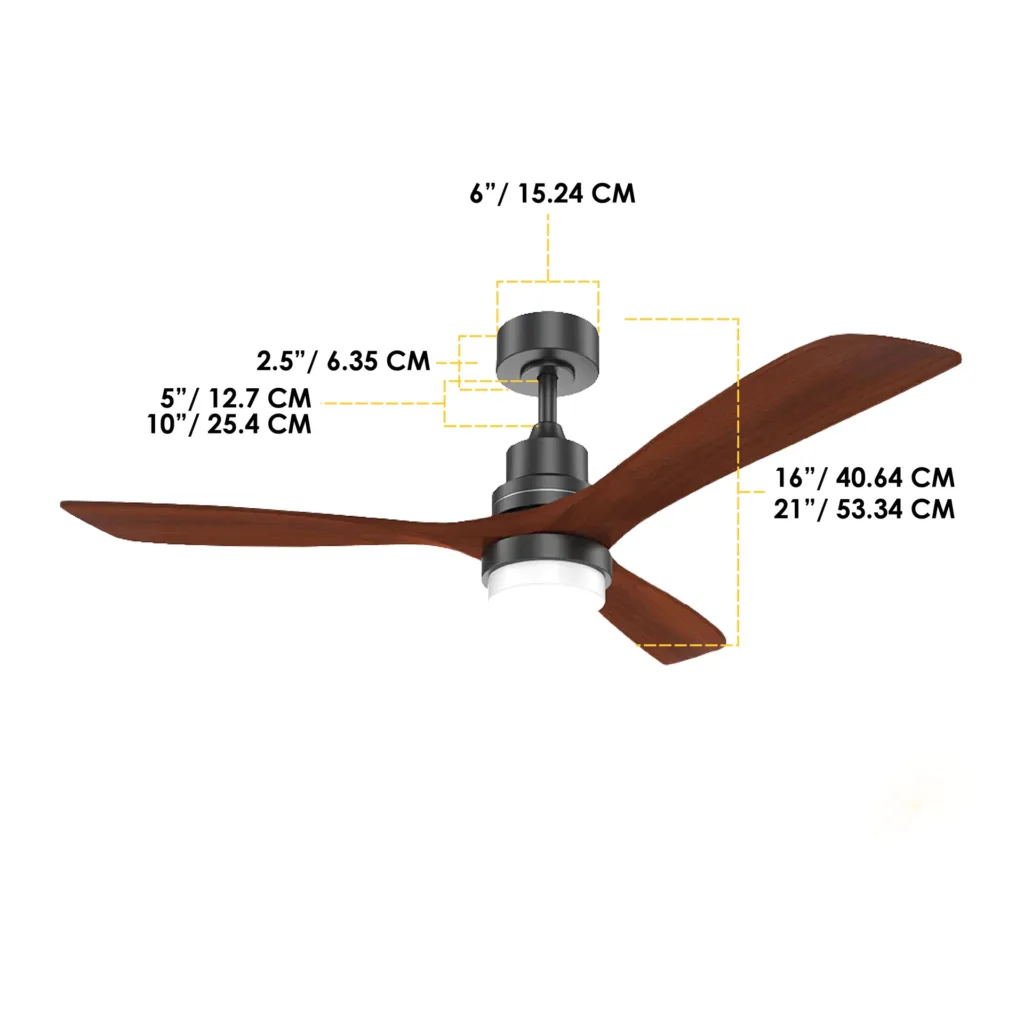

Choose a 5-inch or 10-inch downrod depending on the ceiling height.
Thread the motor’s main wire through the downrod, insert it into the motor shaft, insert the pin, and lock the side anti-loosening screw. - Wiring and Hanging
Hang the assembled fan ball joint into the groove of the ceiling mounting bracket.
Smart Wiring: Connect according to the colors (generally black to black L, white to white N, green/yellow to ground wire).
Slide the smart receiver into the mounting bracket. - Installing the Light Plate and Lampshade
Connect the quick connector of the LED light assembly.
Attach or screw the LED light plate to the bottom of the motor.
Rotate and snap on the high-transparency lampshade.
🌟 Key Features: Why choose this ceiling fan?
- The Beauty of Solid Wood with Exquisite Craftsmanship
Selected Wood: Made of paulownia or walnut wood, which has a long growth cycle, light texture, and corrosion resistance.
Hand-Polished: Each blade undergoes multiple polishing processes, with rounded edges, making it both an appliance and a piece of high-end furniture. - Smart Brain: Full-Scene Interconnection
App Remote Control: Even when you’re in the office, you can turn on the cooling for your pets at home.
Voice Control: Completely frees your hands, supporting linkage with smart devices such as robot vacuums and air conditioners. - “Zero-Sense” Silent Technology
Fully Sealed DC Motor: The core components use thickened silicon steel sheets and all-copper coils, resulting in minimal friction.
Dynamic Balancing: Each set of fan blades undergoes professional dynamic balancing calibration before leaving the factory, ensuring stability even at high speeds, without shaking or noise. - Professional Visual Experience
Flicker-Free LED: Protects eyesight and eliminates the ripple effect when taking photos with your phone.
Full-Spectrum Lighting: Whether it’s a warm family dinner (warm light) or efficient home office work (cool white light), you can switch with one click. - Environmental Protection and Energy Saving
Level 2 Energy Efficiency: Consumes only about 0.5-0.8 kWh of electricity for 24 hours of operation.
Natural Wind Algorithm: When set to gears 3-4, the fan randomly adjusts the frequency to simulate gusts of natural mountain breeze, avoiding the discomfort caused by direct blowing.
【100% Natural Solid Wood Material】: Unlike cheap plastic or MDF fan blades, we select three high-quality paulownia wood blades, processed through multiple manual polishing processes, retaining the natural original texture, making them corrosion-resistant, moisture-proof, and lighter in operation.
【Ultra-Quiet Variable Frequency DC Motor】: Equipped with an advanced high-efficiency DC motor, the operating sound is as low as 30dB.
It not only saves 70% more energy than traditional AC motors but also provides up to 6 levels of wind speed adjustment, meeting all needs from a gentle breeze to a strong cool wind.
【Deep Smart Home Integration】: Supports Wi-Fi connection and is compatible with Alexa, Google Home, and Siri.
Even when you’re away from home, you can remotely manage the air circulation in your home or set complex timing schedules via the mobile app.
【Flicker-Free Dimmable LED Light】: The built-in LED light source supports 3000K warm light/4000K natural light/6000K cool white light switching.
High color rendering index (CRI 80+) accurately restores home colors and protects the eyesight of your family.
[Suitable for all seasons and easy to install]: Features forward and reverse rotation functions, providing cooling in summer and improving heating circulation in winter.
Equipped with two suspension rods of different lengths (5 inches and 10 inches), easily adaptable to various ceiling heights, and installation takes only 30-45 minutes.
