- Features of the Integrated Ceiling-mounted Fan light
- Integrated design
Combine the lighting and fan into one to save space
The appearance is simple and elegant, suitable for living rooms, bedrooms, dining rooms, studies, etc - Energy-saving and power-saving
LED light sources are mostly adopted, featuring low power consumption and long lifespan
Most fan motors are DC brushless motors, which are more energy-efficient - Quiet and comfortable
It operates with low noise and is especially suitable for bedrooms, rooms for the elderly, and children’s rooms
The wind feels gentle, not blowing directly and not causing dizziness - Multi-speed adjustment
Wind speed: Usually supports 3 to 6 adjustable Settings
Lighting: Supports cold light/warm light/neutral light, and some can be dimmed steplessly - Intelligent control
Common control methods
Remote control
Wall switch
APP/Voice control (for some smart models)

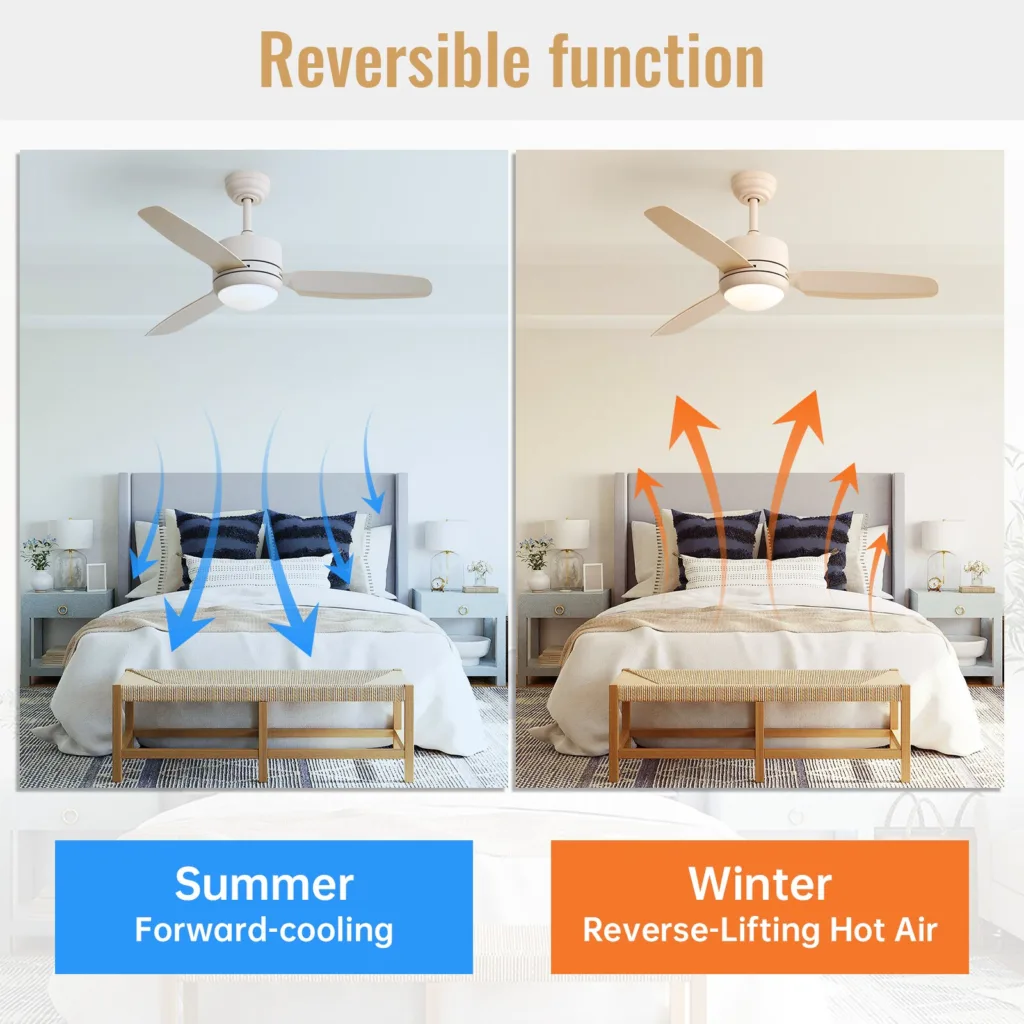

Supports scheduled shutdown and sleep mode - Available throughout the four seasons
Summer: Positive air supply for cooling
Winter: Reverse rotation promotes air circulation and enhances heating efficiency (supported by some models)
Ii. Preparations Before Installation
Confirm the installation conditions
It is recommended that the floor height be ≥ 2.6 meters (ceiling-mounted models are friendly to floor height)
Ceiling structure: Cement roof or wooden keel with good load-bearing capacity
The reserved power cord is normal and can be operated with the power off
- Tool preparation
Electric drill
Screwdriver
Expansion screw
Electrical tape
Voltage tester
⚠️ Safety tips: Make sure to cut off the power supply before installation
Iii. Installation Steps for Integrated Ceiling-mounted Fan Lamp
Step 1: Fix the base
Remove the lamp body base
Align the base with the ceiling and drill holes
Fix the base firmly with expansion screws
Step Two: Connect the wires
It is usually a three-line system:
“Fireline (L
Neutral wire (N
Ground wire (if any)
Corresponding color connections (generally red/brown = fire, blue = zero, yellow-green = earth)
Wrap the interface with electrical tape
Step 3: Install the lamp body and fan assembly
Hang or screw the lamp body into the base slot
Fix the screws to ensure there is no shaking
Step Four: Install the lampshade
Fasten or rotate the lampshade for installation
Make sure the seal is tight and stable
Step 5: Power-on test
Turn on the power.
Test
Switching of light brightness and color temperature
Fan speed, forward and reverse rotation
Whether the remote control or the app function is normal
Iv. Common Precautions
❌ is not recommended to be installed on gypsum boards with insufficient load-bearing capacity
❌ Do not modify the circuit structure privately
✅ Fan blades need to be cleaned regularly to prevent dust accumulation from affecting balance
✅ The remote control should be protected from moisture and drops
V. Recommendations for Suitable Groups
Small-sized apartment families
Residential buildings with low floor height
People who want a simple decoration style
Users who do not want to install ceiling fans and ceiling lamps separately
The size usually refers to the diameter of the fan/the diameter of the lamp body
The recommended size of the room is suitable for the type of room
≤ 8 square meters, 20-24 inches (about 50-60cm) bathroom, small study, wardrobe room
8-12 square meters, 24-30 inches (approximately 60-75 cm) secondary bedroom, children’s room
Master bedroom and study, 12 to 18 square meters, 30 to 36 inches (approximately 75 to 90cm)
18-25 square meters, 36-42 inches (approximately 90-105cm), small living room, dining, and living room integrated
A medium-sized living room of 25 to 35 square meters, 42 to 48 inches (approximately 105 to 120cm)
≥ 35 square meters, 48 inches or more, or a large living room with double fan lights and high ceiling space
Summary
When designing and selecting the model, the size of the fan lamp and the air volume grade should be reasonably matched according to the room area and functional requirements to ensure uniform wind sensation and good noise control. The overall solution, while ensuring functionality, also takes into account aesthetics and practicality, avoiding the visual clutter caused by traditional ceiling fans or multi-lamp combinations. It is a cost-effective and easy-to-implement ceiling configuration solution in modern residences.
